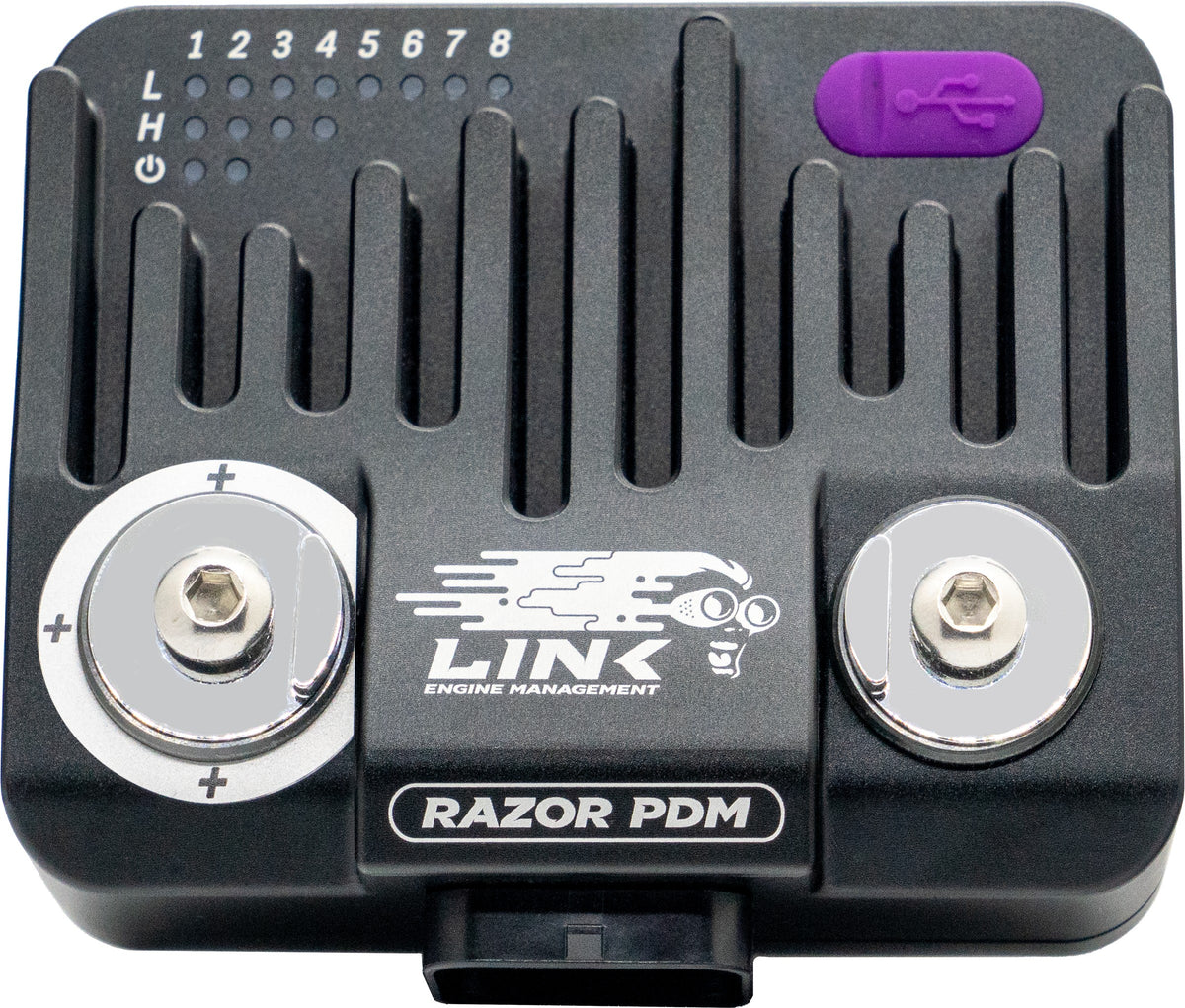

Link Razor PDM
From $1,070.00
Twelve programmable outputs in a sealed aluminium case, in place of a fuse box and a bank of relays.
We stock it. Solid state throughout, so there are no relay contacts to weld shut and no blade fuses to carry spares for. Outputs are configured in Link's free PDM Link software, and the unit can be driven over CAN by the ECU or from a CAN keypad in the cabin.
Outputs
- 4 × ultra high power outputs, 25 A continuous, 70 A peak
- 8 × universal ADIO pins at 8 A, configurable as inputs or outputs
- 12 programmable outputs in total
- 100 A continuous system current, 160 A peak
Control and configuration
- PDM Link configuration software, free from Link
- Preset configuration files for common applications
- CAN control from the ECU or from a CAN keypad
Case and connector
- Fully sealed CNC machined aluminium enclosure
- 26 way waterproof Superseal automotive connector
Bundles
The twin and triple packs suit builds needing more than twelve outputs, or distribution at more than one point in the car. The keypad bundle pairs the PDM with Link's 12 button CAN keypad, which is how most people switch it from the driver's seat.
