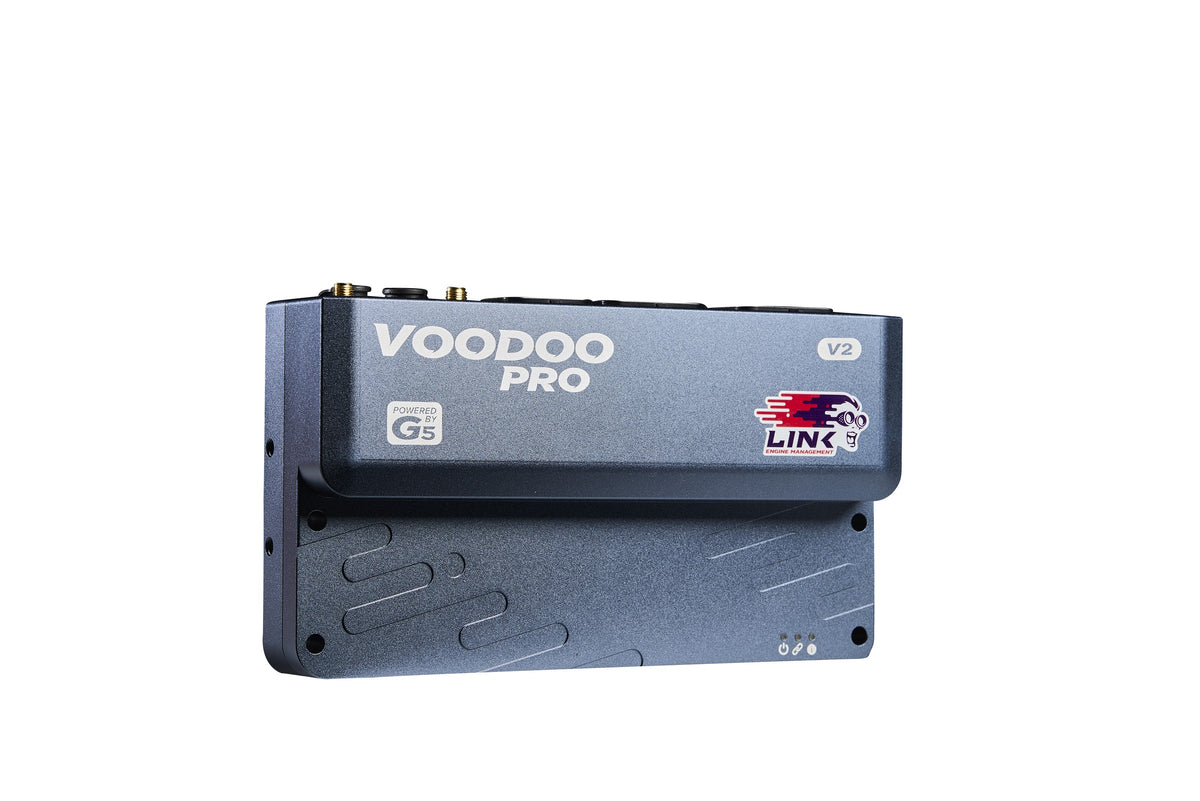

Link G5 Voodoo Pro ECU

Twenty four output drives and dual onboard wideband controllers, built around direct injection.

We stock it. This is the V2 Pro, revised in April 2026 with a new form factor and the Voodoo Neo architecture. It runs the same PCLink software as the G4X range, so moving up from a StormX or an XtremeX is not a new software package to learn.

Outputs

• 12 × injection drives
• 8 × ignition drives
• 4 × multi-purpose drives, injection or ignition, one purpose per pin at a time
• 24 output drives in total. Link quotes up to 16 injection or up to 12 ignition, and both of those figures count the same multi-purpose four, so they cannot both be reached at once
• 6 × dedicated auxiliary outputs. Link quotes 14 to 30 auxiliary outputs in total, depending on how many injection and ignition drives go unused
• 2 × H-bridges, for electronic throttle and low power wastegate control

Inputs

• 14 × analog voltage inputs
• 10 × digital inputs
• 8 × ADIO dual purpose pins
• 4 × temperature inputs
• 2 × trigger inputs
• 2 × knock inputs

Onboard sensing

• 2 × onboard LSU 4.9 digital wideband controllers

Logging and communication

• 1 GB onboard logging, up to 250 channels, up to 100 kHz
• USB-C
• Wi-Fi
• Ethernet
• 2 × CAN bus
• PCLink tuning software, shared with the G4X range

Connectors

• Superseal A, B and E plugs

Physical

• 193.5 mm wide × 109.2 mm deep × 45.0 mm high
• 768 grams

Fitment

• Up to 12 cylinders with port or direct injection and direct spark
• Up to 8 cylinders with staged direct and port injection
• Up to 6 rotors

DI Driver 4

Direct injection needs a DI Driver 4 module alongside the ECU. One module covers four direct injectors, so an eight cylinder direct injection build takes two. Choose Not required if you are running port injection only.
