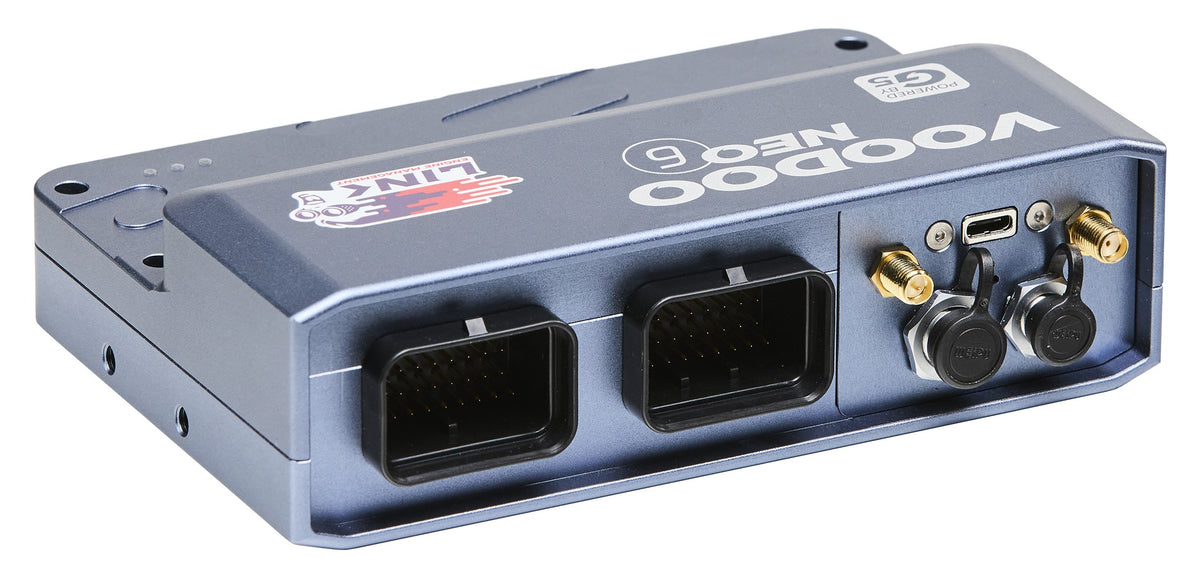

Link G5 Voodoo Neo 6 ECU

Twelve injection drives, eight ignition drives, an onboard wideband controller and GPS, in the same compact case as the Neo 4.

We stock it. Where the Neo 4 tops out at a staged four cylinder, the Neo 6 runs a six cylinder with staged sequential injection and dual high pressure fuel pumps, or an eight cylinder as sequential only.

Outputs

• 12 × injection drives
• 8 × ignition drives
• 20 output drives in total
• Up to 6 auxiliary outputs, the number depending on how many injection and ignition drives go unused
• 2 × H-bridges, for electronic throttle

Inputs

• 6 × ADIO dual purpose pins
• 10 × digital inputs
• 3 × analog voltage inputs
• 4 × analog temperature inputs
• 2 × trigger inputs
• 2 × knock inputs

Onboard sensing

• 1 × onboard wideband controller
• GPS

Logging and communication

• 1 GB onboard logging, up to 250 channels
• USB-C, with power capability
• Wi-Fi
• 2 × CAN bus
• PCLink tuning software, shared with the G4X range

Connectors

• TE Superseal 1.0 A and B headers
• USB-C, RP-SMA Wi-Fi, SMA GPS and WEiPU CAN

Fitment

• 6 cylinders with staged sequential injection, dual high pressure fuel pumps and direct spark
• 8 cylinders as sequential only, direct or port injection, with direct spark

DI Driver 4

Direct injection needs a DI Driver 4 module alongside the ECU. One module covers four direct injectors, so a staged six cylinder or a direct injection eight takes two. Choose Not required if you are running port injection only.
