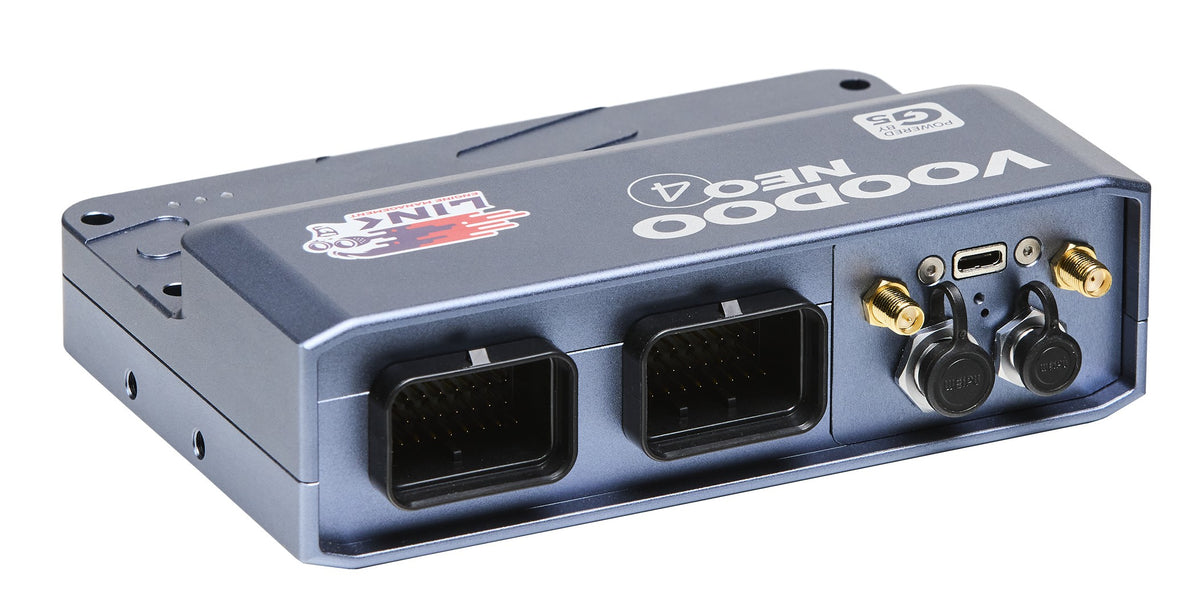

Link G5 Voodoo Neo 4 ECU

Direct injection in a compact case. Eight injection drives, six ignition drives, an onboard wideband controller and GPS.

We stock it. The Neo brings the Voodoo Pro's motorsport and engine management feature set down to smaller engines. The Neo 4 runs a four cylinder with staged sequential injection, a single high pressure fuel pump and direct spark, or a six cylinder as sequential only.

Outputs

• 8 × injection drives
• 6 × ignition drives
• 14 output drives in total
• Up to 12 auxiliary outputs, the number depending on how many injection and ignition drives go unused
• 2 × H-bridges, for electronic throttle

Inputs

• 6 × ADIO dual purpose pins
• 10 × digital inputs
• 3 × analog voltage inputs
• 4 × analog temperature inputs
• 2 × trigger inputs
• 2 × knock inputs

Onboard sensing

• 1 × onboard wideband controller
• GPS

Logging and communication

• 1 GB onboard logging, up to 250 channels
• USB-C, with power capability
• Wi-Fi
• 2 × CAN bus
• PCLink tuning software, shared with the G4X range

Connectors

• TE Superseal 1.0 A and B headers
• USB-C, RP-SMA Wi-Fi, SMA GPS and WEiPU CAN

Fitment

• 4 cylinders with staged sequential injection, a single high pressure fuel pump and direct spark
• 6 cylinders as sequential only, direct or port injection, with direct spark

DI Driver 4

Direct injection needs a DI Driver 4 module alongside the ECU. One module covers four direct injectors. Choose Not required if you are running port injection only.
