Link G4X XtremeX LS Kit, Drive-by-Wire

An LS swap kit rather than a bare ECU. A G4X XtremeX with a terminated LS engine harness, built for electronic throttle.

We stock it. The harness arrives terminated, with the engine side connectors already fitted, so it is a fit and wire job rather than a build. Check your throttle type before ordering. This is the drive-by-wire kit, which is why it uses the XtremeX: electronic throttle control is programmable on that unit. The StormX kit is the cable throttle one.

Kit contents

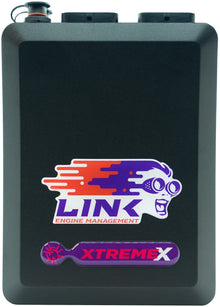

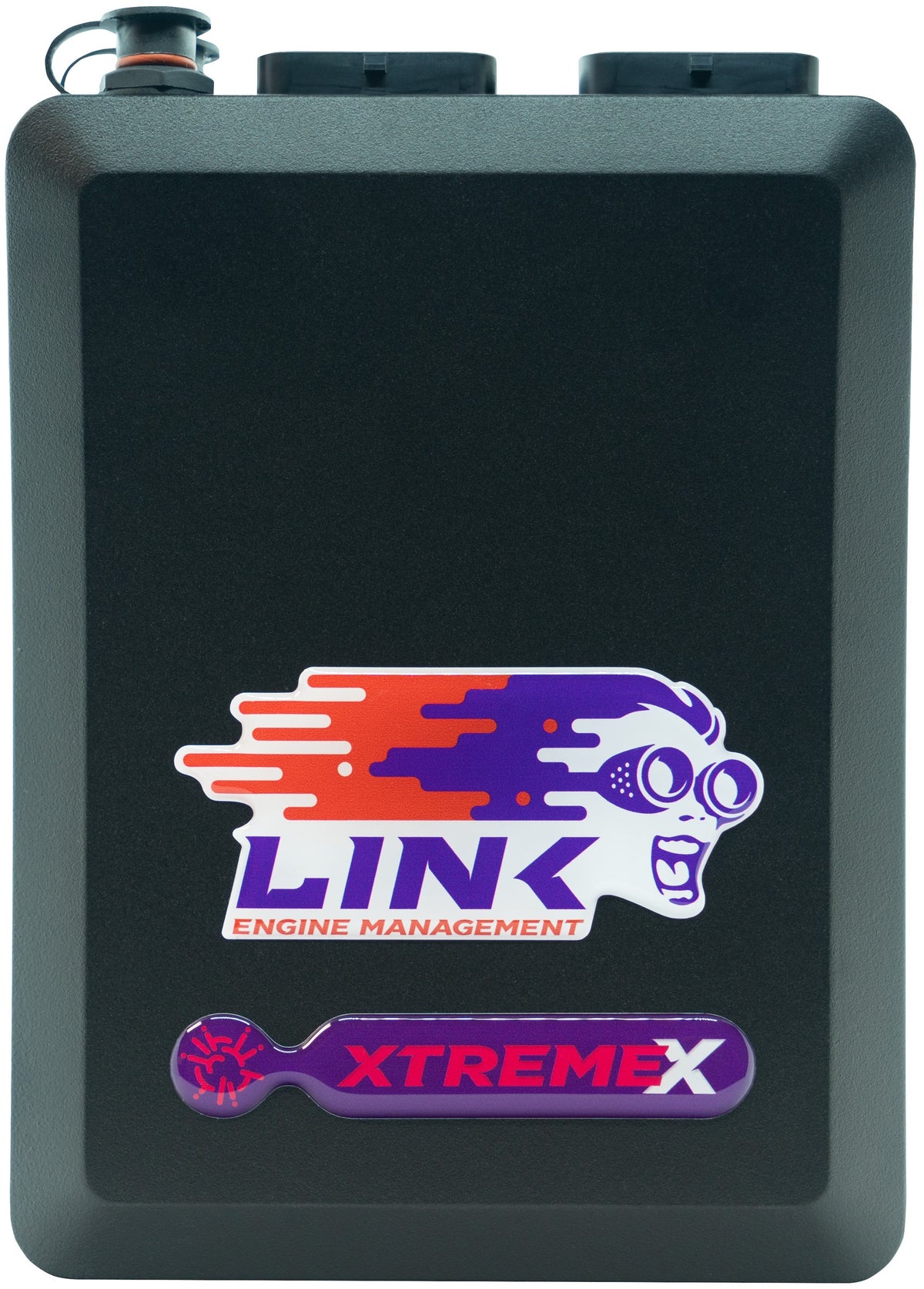

• G4X XtremeX ECU, Link part 109-4000
• Terminated LS engine harness, drive-by-wire

Sensors are not included in this kit. If you need a wideband, air temperature, knock or pressure sensors, tell us and we will quote them alongside.

ECU outputs

• 8 × injection drives
• 8 × ignition drives
• 10 × auxiliary outputs, from unused fuel and ignition drives
• +5 V and +8 V sensor power supplies
• Fully programmable electronic throttle control

ECU inputs

• 11 × analog inputs
• 10 × digital inputs, two of which are used by the second CAN bus when it is enabled
• 4 × temperature inputs
• 2 × trigger inputs
• 2 × knock inputs

Logging and communication

• 512 MB onboard logging at 32 bit, up to 250 channels, up to 1 kHz per channel
• 2 × CAN bus
• 1 × serial RS232 connection
• 1 × USB tuning connection
• PCLink tuning software, shared across the whole Link range

Fitment

• GM LS engines with electronic throttle
• Up to 8 cylinders, sequential injection and direct spark
• Naturally aspirated or forced induction
