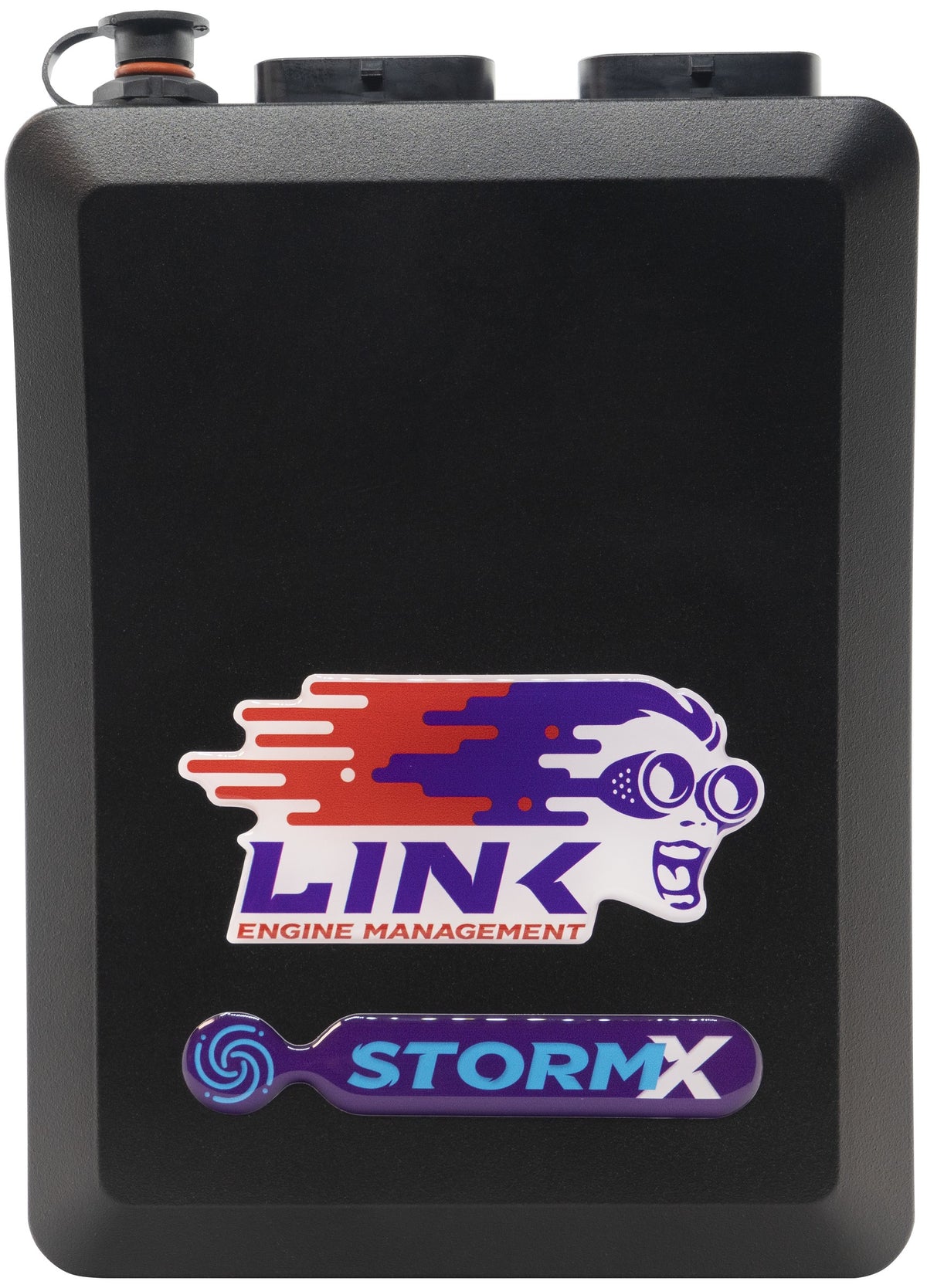

Link G4X StormX ECU
$2,050.00
Goes with.
- Link A Loom, Wire-In From $100.00
- Link B Loom, Wire-In From $100.00
- Knock Sensor From $125.00
- Link CAN-Lambda Module $427.00
Eight injector and eight ignition drives, enough for sequential injection and direct spark on an eight cylinder or a four rotor.
We stock it. The StormX is the point in the G4X range where cylinder count stops being the limit. Against the XtremeX above it, you give up analog inputs, auxiliary outputs and the second CAN bus, not engine coverage.
Outputs
- 8 × injector drives
- 8 × ignition drives
- 8 × auxiliary outputs
Inputs
- 8 × analog inputs
- 8 × digital inputs
- 3 × temperature inputs
- 2 × trigger inputs
- 2 × knock inputs
Logging and communication
- 512 MB onboard logging at 32 bit, up to 250 channels, up to 1 kHz per channel, 100 kSamples per second maximum
- CAN bus
- USB tuning connection
- PCLink tuning software, shared across the whole Link range
Tuning and motorsport features
- Onboard trigger oscilloscope
- Onboard knock control
- Open and closed loop boost control
- Stepper motor idle control
- Rotary oil metering pump control
- Full gear shift control, antilag and launch control
Fitment
- Up to 8 cylinders or 4 rotors, sequential injection and direct spark
- Naturally aspirated or forced induction
Looms
The StormX is a two connector unit and needs both the A and the B loom. Link sells them separately in 0.4 m, 2.5 m and 5 m lengths. Tell us the lengths you need and we will add them to the order.
