Link G4X MonsoonX Wire-In Bundle

Everything needed to wire a MonsoonX into a car, in one Link part number. The ECU, the loom it takes, and the three sensors a wire-in install needs first.

We stock it. This is a fixed bundle, not a pick and mix. If you want a different loom length or a different sensor set, buy the ECU on its own and tell us what to add.

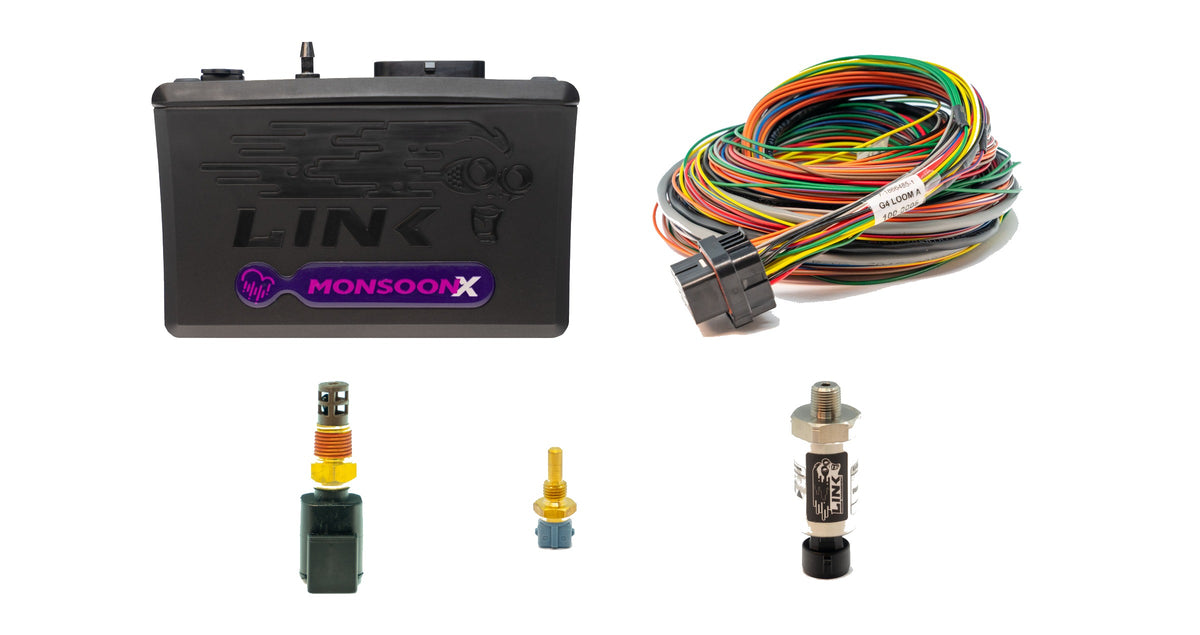

What ships

• G4X MonsoonX ECU, 127-4000
• A loom, medium, 2.5 m, 101-0005
• Air temperature sensor
• Coolant temperature sensor, M12, 101-0077
• Pressure sensor, oil or fuel, 10 bar, 101-0326

ECU outputs

• 4 × injector drives
• 4 × ignition drives
• 6 × auxiliary outputs, with unused ignition drivers available as more

ECU inputs

• 4 × analog inputs
• 4 × digital inputs
• 2 × temperature inputs
• 2 × trigger inputs
• 1 × onboard 4 bar MAP sensor

Logging and communication

• 512 MB onboard logging at 32 bit, up to 250 channels
• 1 × CAN bus
• 1 × USB tuning connection
• PCLink tuning software, shared across the whole Link range

Fitment

• Up to 4 cylinders or 2 rotors, sequential injection and direct spark
• Naturally aspirated or forced induction
• The A loom carries the Link A connector at one end and unterminated, colour coded wires at the other
