Link G4X FuryX Wire-In Bundle

Everything needed to wire a FuryX into a car, in one Link part number. The ECU, both looms it takes, and four sensors.

We stock it. This is a fixed bundle, not a pick and mix. If you want different loom lengths or a different sensor set, buy the ECU on its own and tell us what to add.

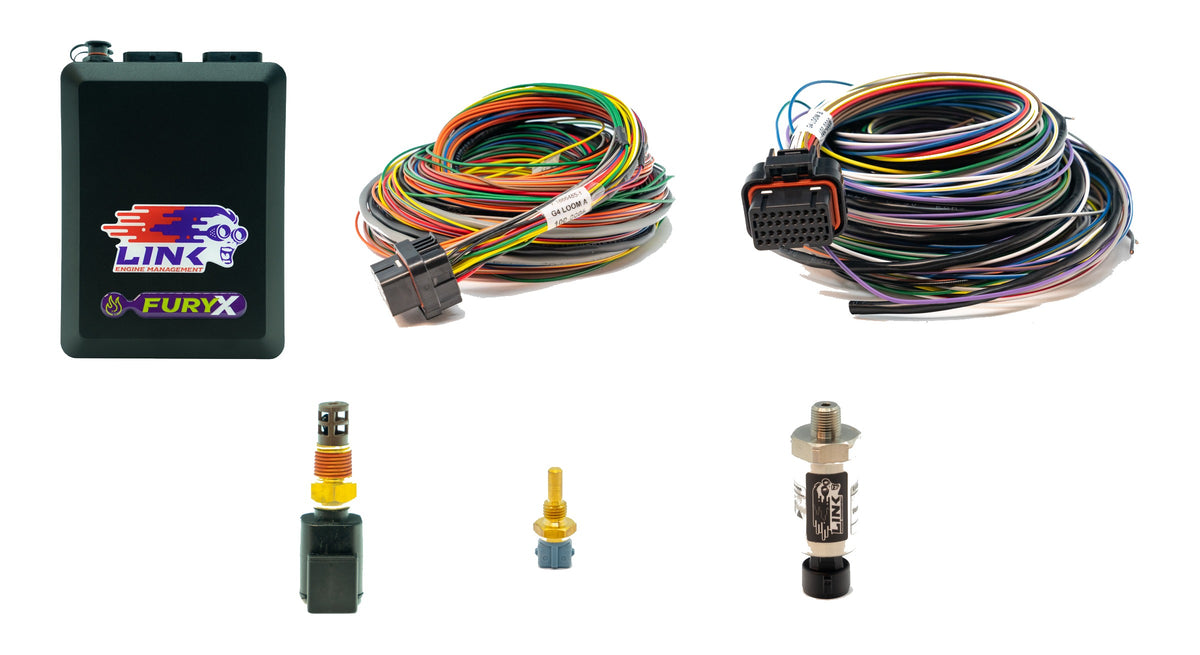

What ships

• G4X FuryX ECU, 122-4000
• A loom, medium, 2.5 m, 101-0005
• B loom, medium, 2.5 m, 101-0006
• Air temperature sensor
• Coolant temperature sensor, M12, 101-0077
• Pressure sensor, oil or fuel, 10 bar, 101-0326
• Combined pressure and temperature sensor, Bosch, 101-0320

ECU outputs

• 8 × injection drives
• 6 × ignition drives
• 10 × auxiliary outputs, from unused fuel and ignition drives
• Fully programmable electronic throttle control

ECU inputs

• 11 × analog inputs
• 10 × digital inputs, two of which are used by the second CAN bus when it is enabled
• 4 × temperature inputs
• 2 × trigger inputs
• 2 × knock inputs

Onboard sensing

• 1 × onboard digital wideband lambda controller

Logging and communication

• 512 MB onboard logging at 32 bit, up to 250 channels
• 2 × CAN bus
• 1 × serial RS232 connection
• 1 × USB tuning connection
• PCLink tuning software, shared across the whole Link range

Fitment

• Up to 6 cylinders or 3 rotors, sequential injection and direct spark
• Both looms carry the Link connector at one end and unterminated, colour coded wires at the other
