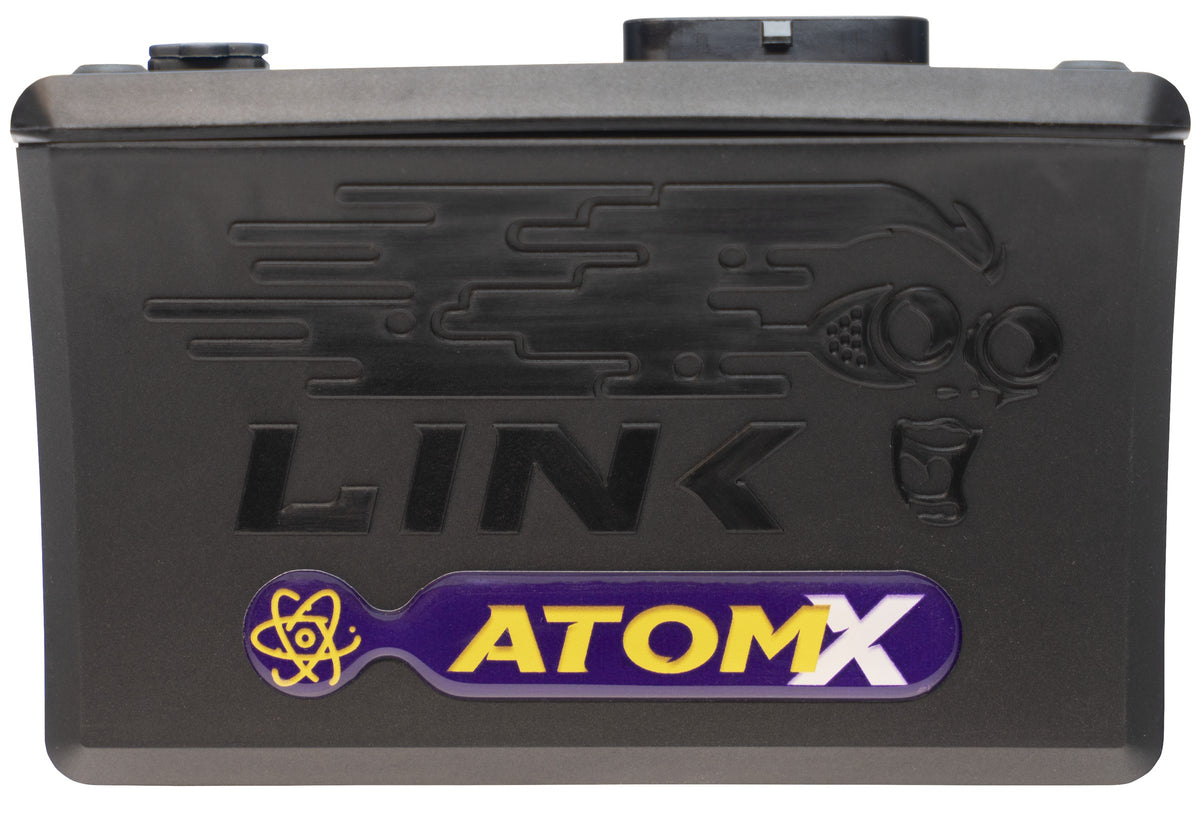

Link G4X AtomX ECU

Link's entry level wire-in ECU, and the smallest unit in the G4X range. Four injector and four ignition drives on a single sealed connector.

We stock it. The AtomX runs the same PCLink software and the same 512 MB logging as every unit above it. What you give up against a MonsoonX is inputs and outputs, not capability.

Outputs

• 4 × injector drives
• 4 × ignition drives
• 4 × auxiliary outputs

Inputs

• 3 × analog inputs
• 2 × digital inputs
• 2 × temperature inputs
• 2 × trigger inputs

Logging and communication

• 512 MB onboard logging, up to 250 channels, up to 1 kHz per channel
• 1 × CAN bus
• 1 × USB tuning connection
• PCLink tuning software, shared across the whole Link range

Connector

• 1 × 34 position waterproof connector

Fitment

• Up to 4 cylinders or 2 rotors, sequential injection and direct spark
• Naturally aspirated or forced induction
• Onboard knock control, open loop boost control, flex fuel via analog input

Looms

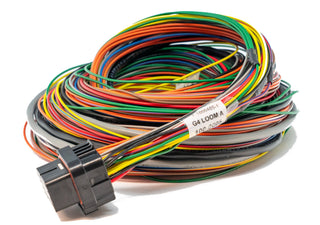

The AtomX takes a single A loom, which Link sells separately in 0.4 m, 2.5 m and 5 m lengths. Tell us the length you need and we will add it to the order.
