Haltech Nexus R5 VCU
$4,415.00
A power distribution module, a data logger, a dual-channel wideband controller and an engine management system in one unit. Haltech calls it a VCU, a Vehicle Control Unit.
We stock it.
Outputs
- 4 × 25 A continuous, push-pull, PWM capable to 5 kHz, for injectors, coils, transbrake, thermofan or fuel pump
- 12 × 8 A continuous high side, low speed PWM at 200 Hz, for sensors and NOS solenoids
- 18 × peak and hold injector drivers, usable as low side drive outputs
- 12 × low current ignition outputs, usable as low side drive outputs
- 8 × low side drive outputs, PWM capable
- 4 × push-pull or h-bridge, 8 A, PWM capable, for electronic throttle
Inputs
- 23 × 0-5 V analog, with redundancy for electronic throttle and switchable 5 V pullup
- Trigger and home inputs, differential, with adjustable thresholds and glitch filters
- 10 × synchronous pulsed, zero crossing or adjustable threshold: cam sensor, frequency, or 0-5 V analog
Logging and communication
- 2 × onboard wideband controllers, supporting NTK and LSU4.9
- 3 × CAN ports with switchable termination
- Onboard logging up to 300 channels at sample rates to 1 ms (1 kHz), 512 MB internal memory
Fitment
- Engines up to 12 cylinders, or up to 6 rotors
- Racing applications where advanced race features, data logging and power management control are required

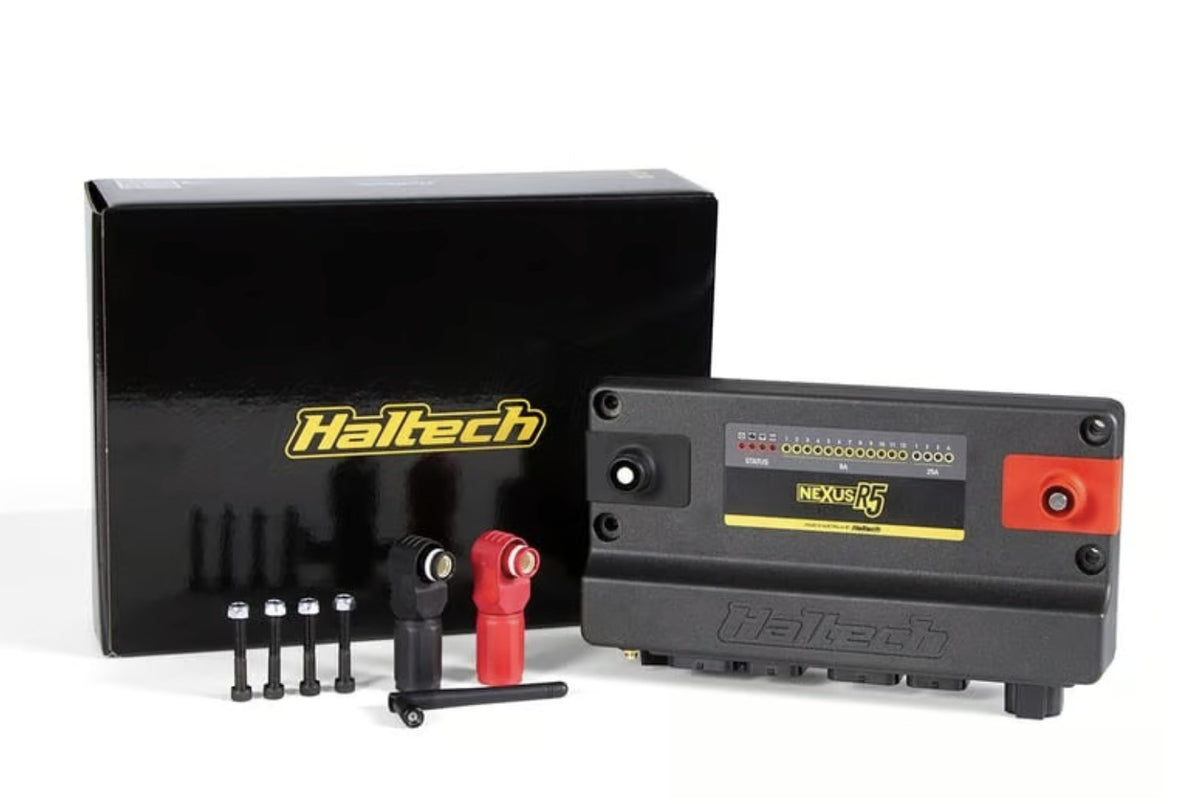

In the box
- Nexus R5 VCU
- SurLok connectors, red and black
- Wi-Fi antenna
- Mounting bolts
- USB-C cable and USB-C dust cap
