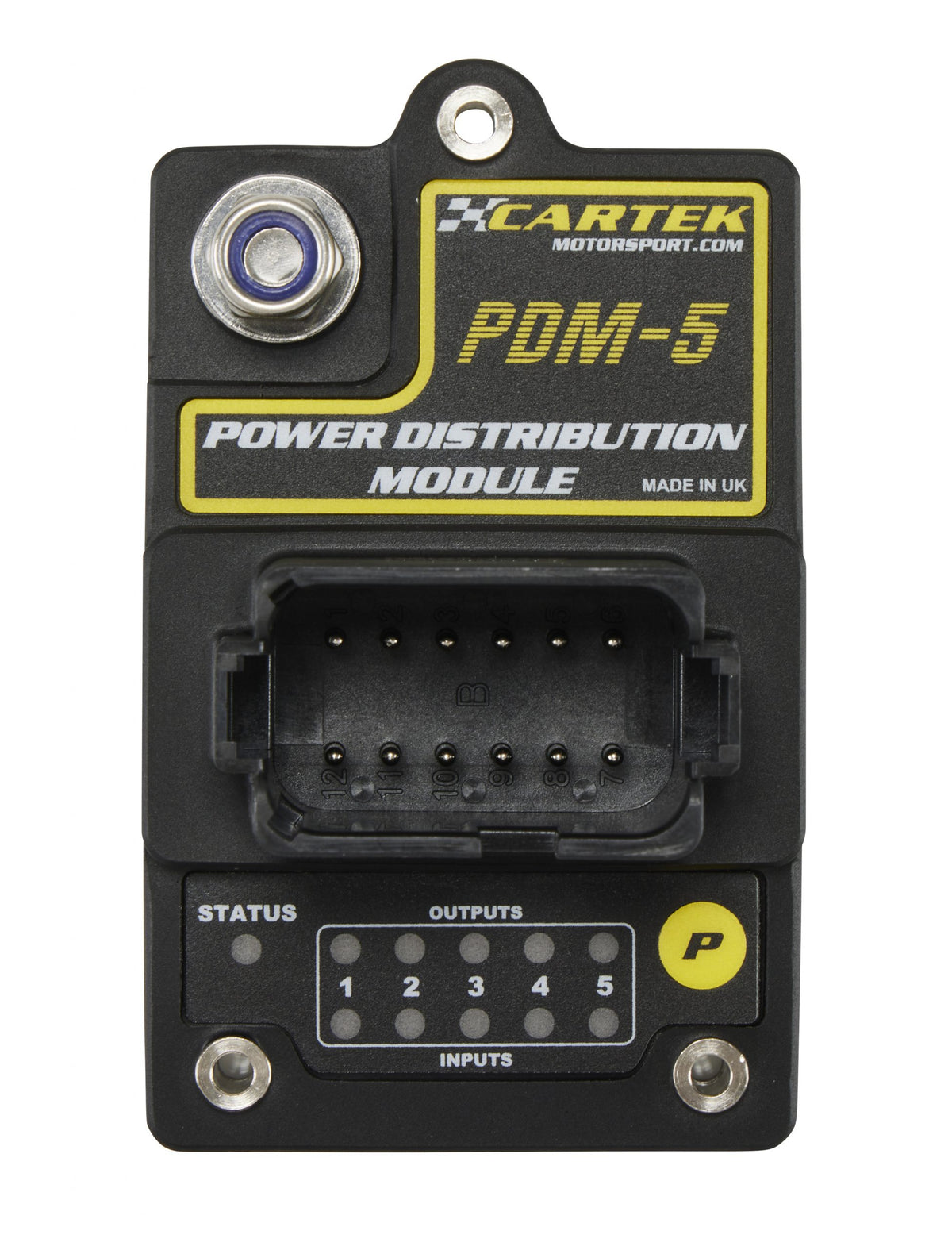

CARTEK PDM-5

Five-channel power distribution module, built for installs that do not need CAN-Bus. Outputs run ignition coils, rad fans, fuel pumps and rain lights. It can also be configured as a dedicated car lights or spot lamps controller.

We stock it as the simplest of the three. No CAN, five channels, the same connector and footprint as the PDM-4C.

Outputs

• 5 outputs: 20 A current limit per channel, configured in 5 A steps
• 60 A maximum total output
• Selectable soft start for high-inrush loads such as fans or pumps

Inputs

• 5 inputs: active low, active high, edge triggered, always on, or PWM signal to 200 Hz
• 1 auxiliary input: ignition, or logic functions such as hazard, car lights controller or spot lamps control
• Momentary or latching switches and signals

Functions

• 6 output functions: input controlled, flashing at 1 Hz, timer on at 5 or 10 minutes, over-run at 5 or 10 minutes

Connections

• Sealed 12-pin Amphenol (Deutsch DT) connector, the same terminal family we run in the harness
• Crimps and mating connector supplied
• RGB status LEDs for input and output state

Physical

• Operational voltage 8-18 V
• 87 mm (3.4 in) × 52 mm (2.0 in)
• 110 g
